VEKTOR DIREKTOR™

Multivariate Analysis with Direction and Purpose

High Level Multivariate Data Analysis (Chemometrics) Software.

  • Flexible Data Import.
  • Spreadsheet Data Viewer.
  • Wide range of Data Visualisation Tools.
  • Spectroscopic and Other Preprocessing Tools.
  • MVA Data Analysis and Prediction Tools.

What’s New in Version 3.0 PDF Video

Drag it, drop it, use it. It’s that simple.

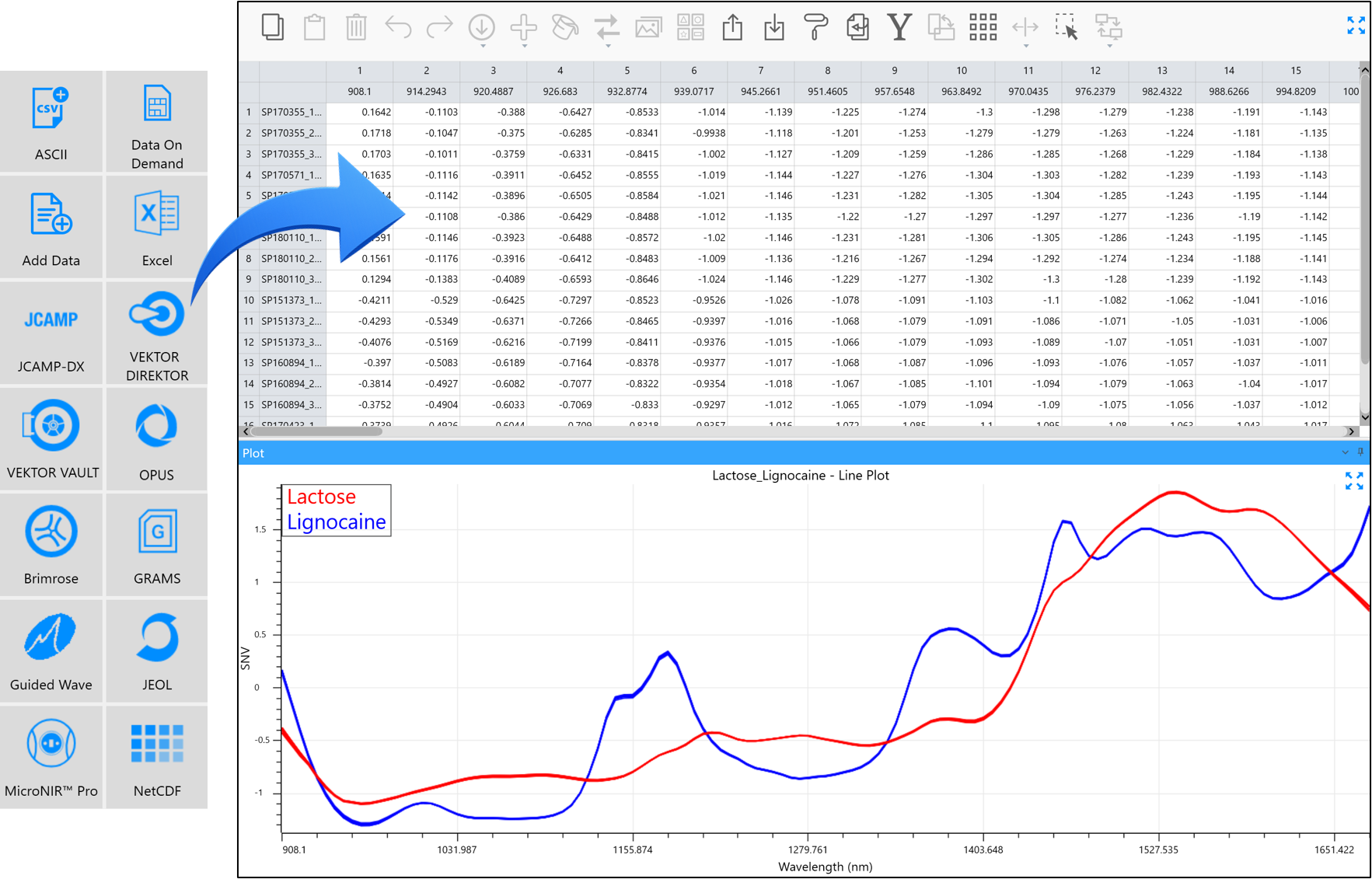

Importing Data

Easy Drag’n’Drop Import

  • Many Formats.
  • General Spreadsheet and Text Based File Formats.
  • VEKTOR DIREKTOR™ Proprietary Format.
  • Many Instrument Vendor Formats.
  • Industrial Databases.
  • Import Assets from VEKTOR VAULT.

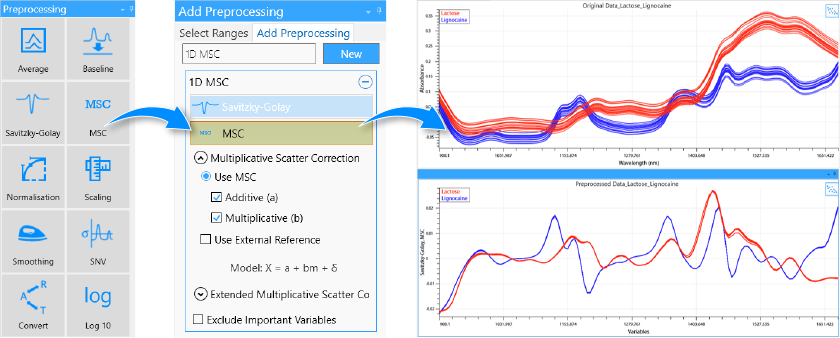

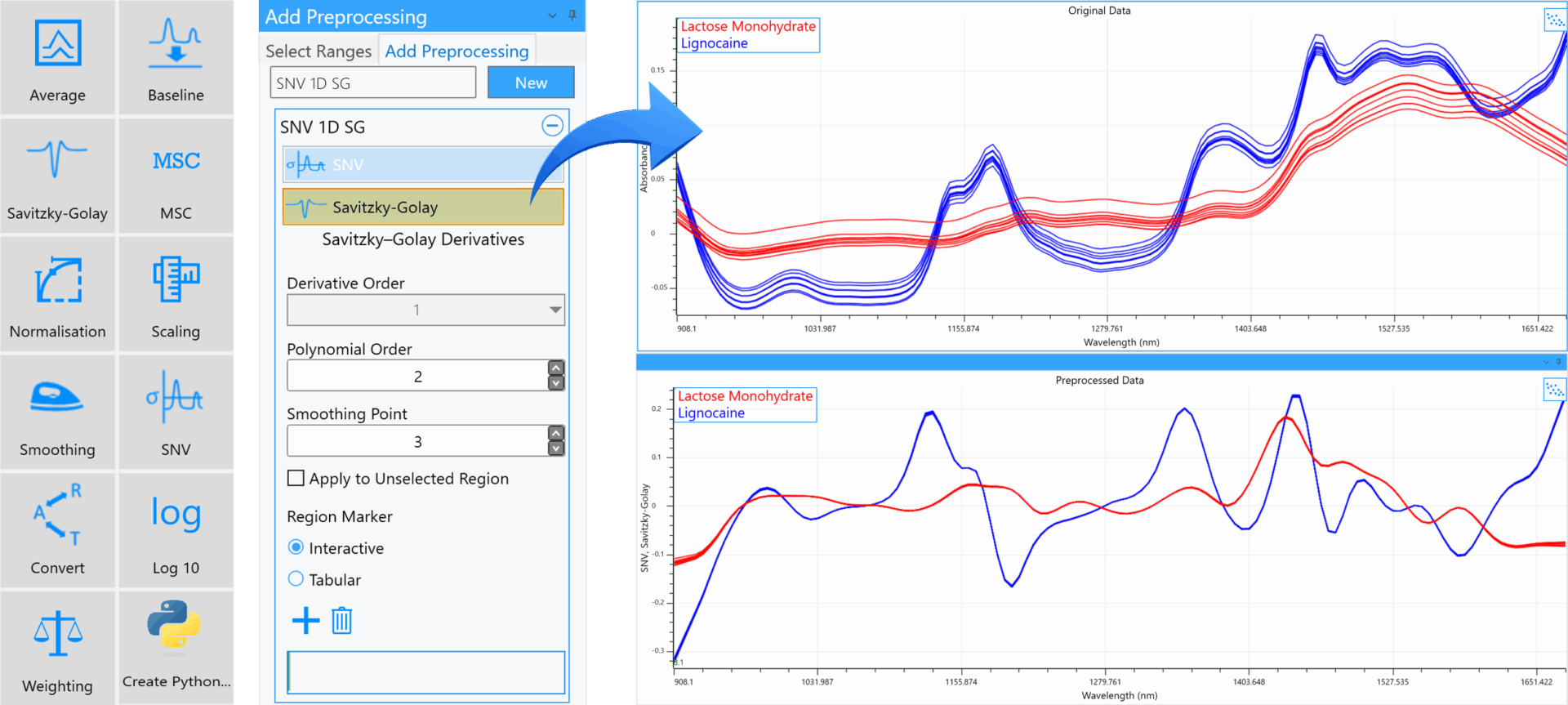

Preprocessing

Interactive Preprocessing Tools For Many Data Types

  • Build Preprocessing Templates and Save Them.
  • Visualise Data Before and After Preprocessing.
  • Interactive Region Selection.
  • Zoom Into Key Regions to Visualise Effect of Preprocessing.
  • Use KomPYleR Python Plugin to Compile Your Own Preprocessing Methods.

Drag it, drop it, visualise it. Simple and Interactive Preprocessing Template Builder.

“What good is a model if you can’t use it?”

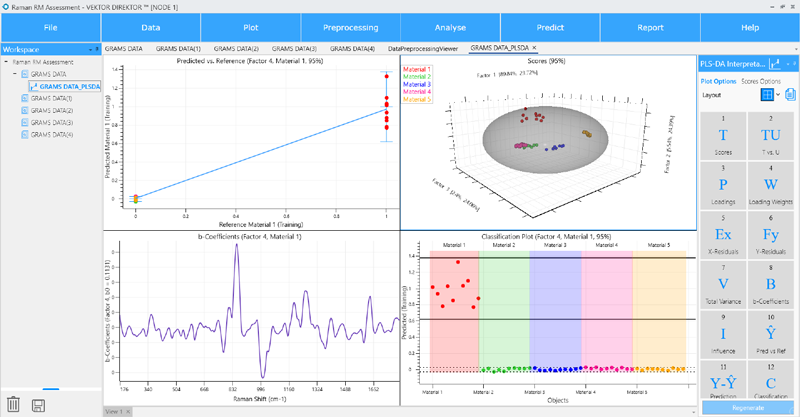

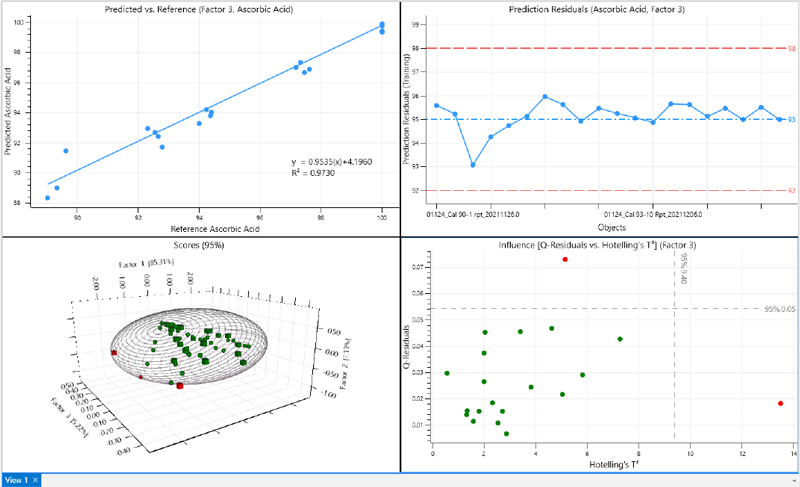

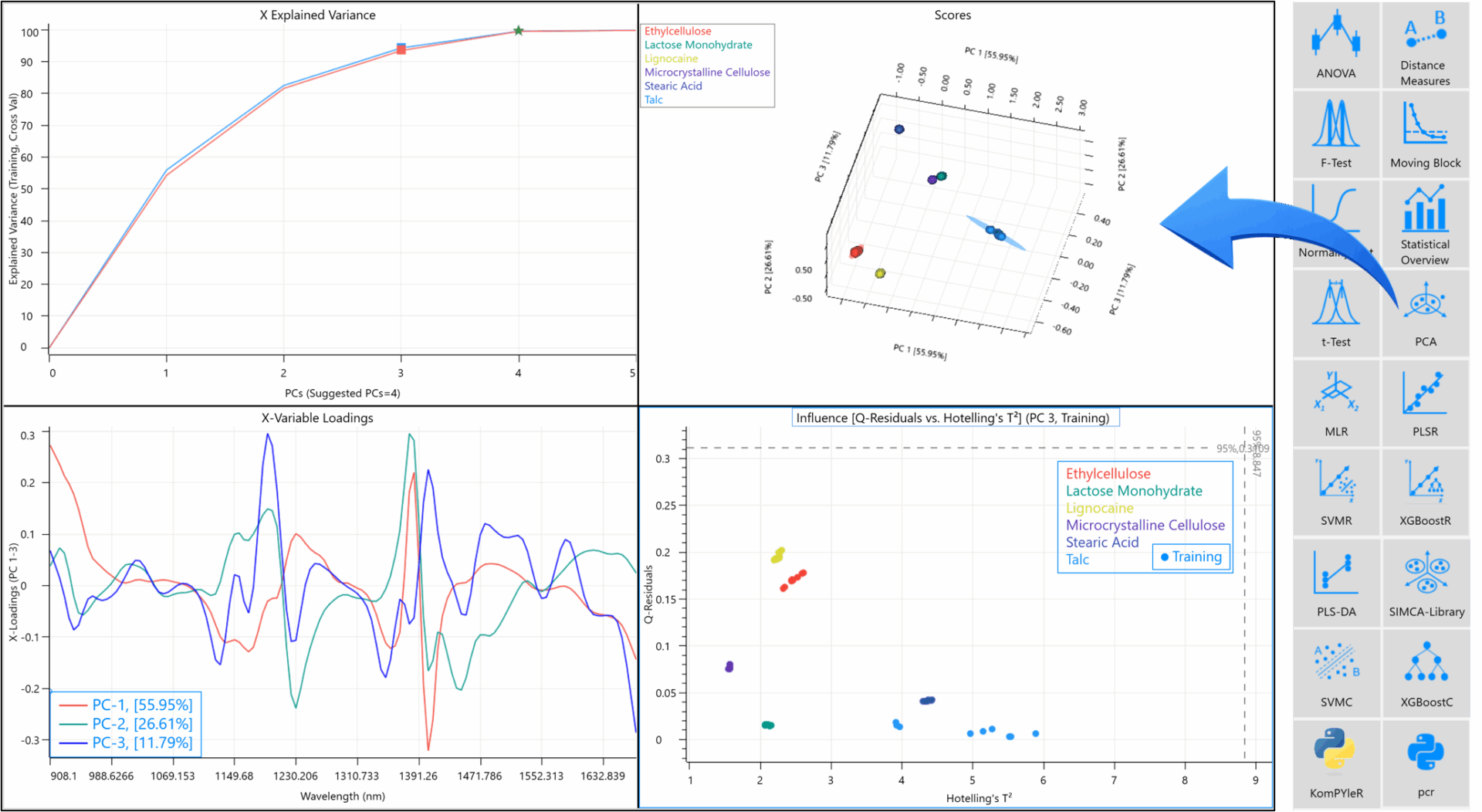

Analysis

Only the Most Commonly Used Data Analysis Methods

  • Univariate Methods.
  • Exploratory Data Analysis.
  • Multivariate Regression.
  • Multivariate Classification.

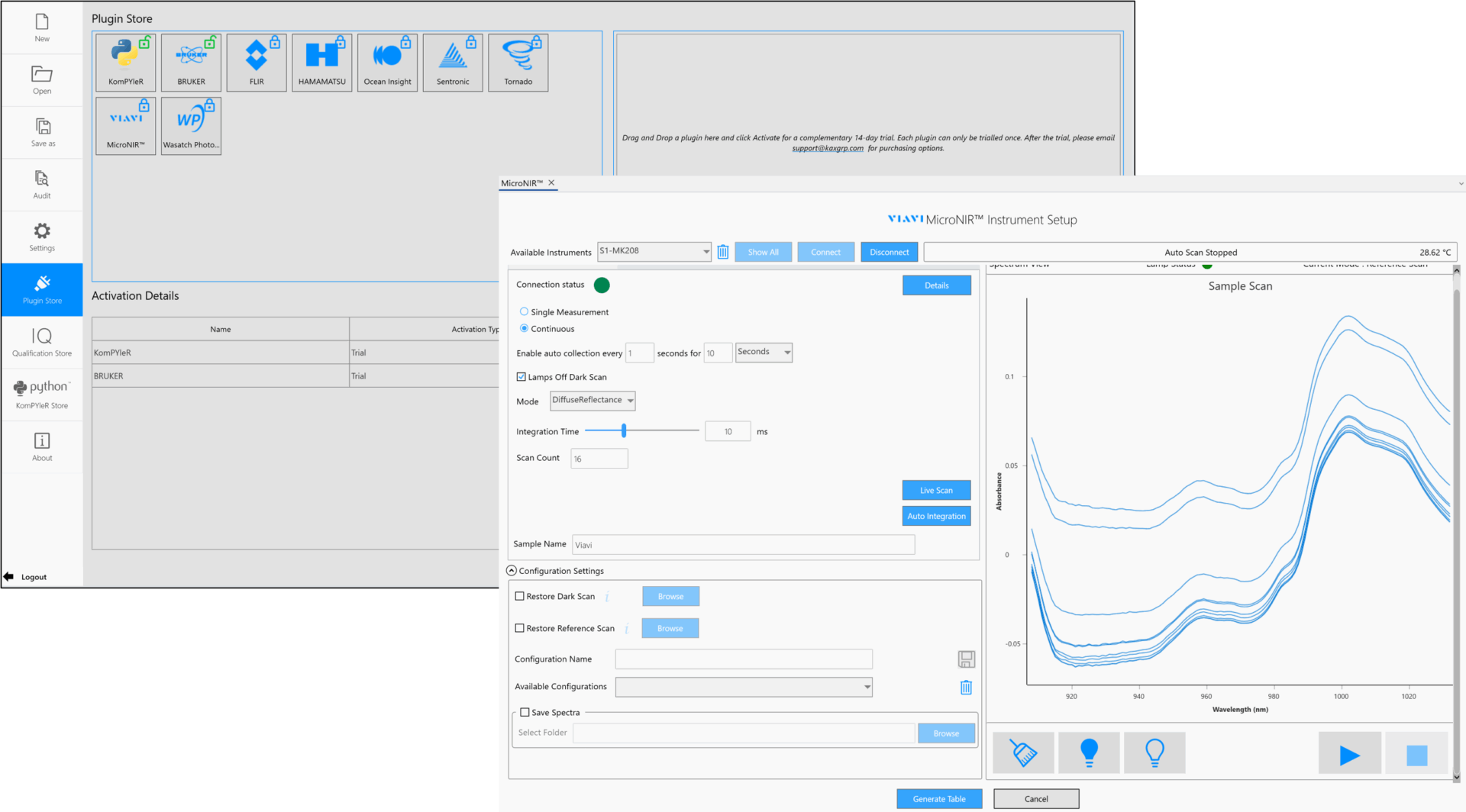

New Plugins

Instrument Drivers & KomPYleR

The new Plugin Section Allows You to Easily Add our Plugins for a Free 2 Week Trial. The Plugins Include Instrument Drivers to Directly Control Popular Hardware from Inside VEKTOR DIREKTOR. The KomPYleR Plugin Allows You to Import Preprocessing or Analysis Methods that are Not Available in VEKTOR DIREKTOR.

Current Supported Hardware;

  • Bruker
  • FLIR
  • Viavi
  • Sentronic
  • Hamamatsu
  • Tornado
  • Wasatch
  • Ocean Insight

“An intelligent and intuitive workflow means you have won
half the battle with Multivariate Data Analysis Problems.”

A Wise Chemometrician

“By only providing the methods you use most of the time, VEKTOR DIREKTOR allows you to get the most out of your data, with the appropriate tools”

System Requirements and Features



Supported Operating Systems Windows 10 or later (64-bit)
Memory (RAM) 16 GB
Processor Specification 2 GHz or faster, quad-core, x64-based
Hard Disk Space 8 GB of available disk space
.NET Framework 4.8
Security Windows Authentication, VEKTOR VAULT (optional)
Graphics Card DirectX 9 or later
Data Imports
  • Spreadsheet and Text (.xlsx, .txt. csv)
  • Universal Formats (GRAMS (.spc), JCAMP (.jdx)
  • NetCDF .(cdf))
  • Instrument Proprietary (VIAVI (.sam), OPUS (.01))
  • Brimrose (.bff3), Guided Wave (.json) and JEOL (.jdf)
  • Instrument Drivers including Hamamatsu and VIAVI
  • Database and Control Systems (Osisoft PI, synTQ)
  • OPC DA and OPC UA live Imports Available

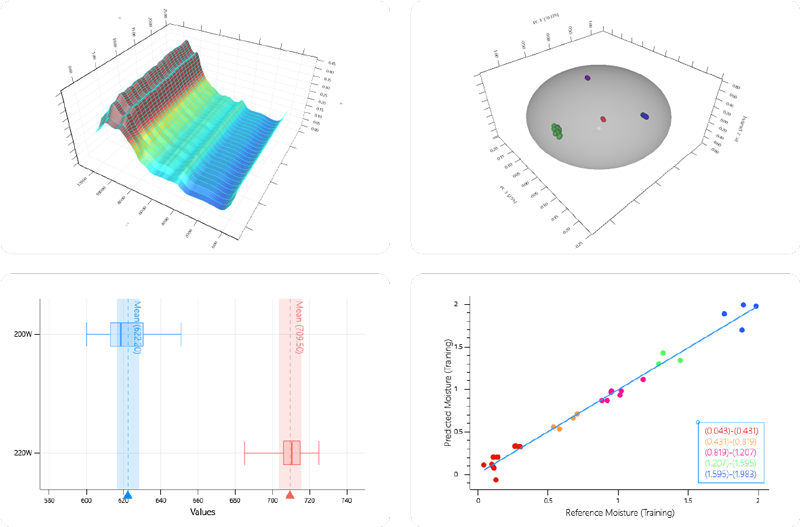

Plots
  • Line
  • Scatter (2D and 3D)
  • Bubble
  • Correlogram
  • Histogram
  • Column
  • Heatmap
  • Image
  • 3D Surface
Preprocessing Methods
  • Smoothing
  • Baseline
  • Normalisation
  • Scatter Correction (Multiplicative Scatter Correction (MSC), Extended Multiplicative Scatter Correction (EMSC) and Standard Normal Variate (SNV))
  • Derivatives
  • Average
  • Spectral Conversion
  • Weighting
  • Scaling and Centering
  • KomPYleR Plugin
Analysis Methods
  • Univariate Methods (ANOVA, Normality, F- and t-Tests)
  • Multiple Linear Regression (MLR)
  • Principal Component Analysis (PCA)
  • Partial Least Squares Regression (PLSR)
  • Soft Independent Modelling of Class Analogy (SIMCA)
  • Partial Least Squares Discriminant Analysis (PLS-DA)
  • Support Vector Machine Regression (SVMR) and Classification (SVMC)
  • Extreme Gradient Boost Regression (XGBR) and Classification (XGBC)
  • Data Compression using PCA/PLSR Scores
  • Moving Block Standard Deviation (MBSD)
  • KomPYleR Plugin

Use the software that makes data analysis, visualisation and model integration Easy.
